Sand Casting Service From Qingdao TianHua YiHe Foundry Factory

Views:1017     Author:Site Editor     Publish Time: 2018-10-16      Origin:Site

Sand casting also called sand mold casting, it's used to produce a wide variety of metal components with complex geometries. These metal parts can vary greatly in size and weight, ranging from a couple ounces to several tons. The small sand cast parts include as gears, pulleys, crankshafts, connecting rods, and propellers. The larger sand casting applications include large equipment housings or heavy machine bases. Sand casting is also common in producing automobile parts, such as engine blocks, engine manifolds, cylinder heads, and transmission cases.
Suitable material: Ductile Iron (SG Iron/Spheroidal Graphite Iron), Grey Iron, Cast Steel, Aluminum, Brass:

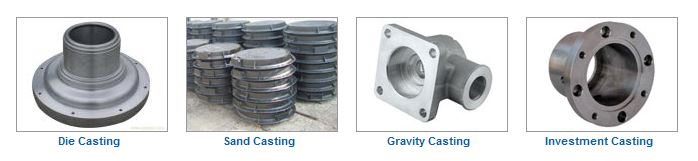

casting

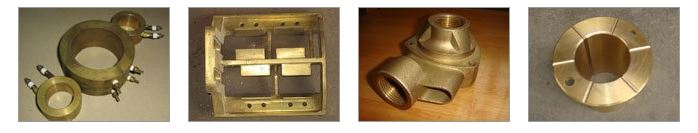

Brass Sand Casting

  Brass Casting Photos on above


We provides a high quality affordable solution for metal casted products according to customer requirements. We are able to utilize our low cost structures in China, and provide a low cost and reliable final product, lower than almost any other countries sand casting manufacturer.

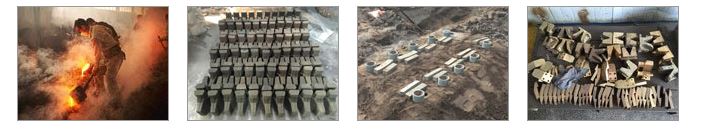

Green Sand Casting:

green sand casting

Green sand casting is the most widely and most convenient method of sand casting. It has the advantages of low cost, flexibility, high productivity, short production cycle and etc. With approximately 60 - 70% usage of all sand casting. Green sand casting is cheaper than resin bonded sand casting.

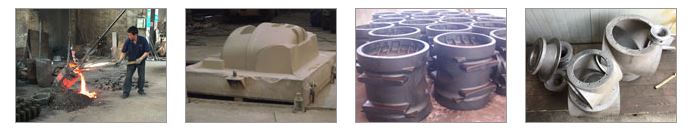

Resin Bonded Sand Casting:

Resin Bonded Sand Casting

The resin bonded sand as a barrier in the casting production. It can effectively prevent the sand sticking on the cast parts. And it can removed nitrogen, sulfur and other gases. So it can guarantee the quality and stability of cast parts.

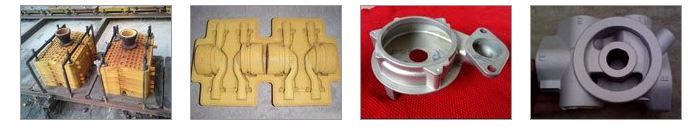

Shell Mold Casting:

shell molds casting

Shell mold casting process offers better surface finish, better dimensional tolerances, and higher throughput due to reduced cycle times. The materials that can be used with this process are cast iron, grey iron, ductile iron, carbon steel, stainless steel, alloy steel, aluminum, aluminum alloy etc. We provide OEM services and have a team of experienced engineers.

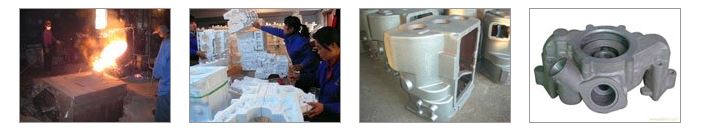

Lost Foam Casting:

lost foam casting

Advantages of Sand casting (Sand Mold Casting):
1. Can produce very large metal parts
2. Can form complex shapes
3. Many material options
4. Low tooling and equipment cost
5. Short delivery times

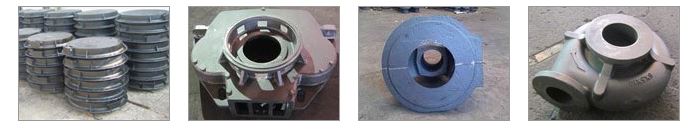

Ductile Iron Casting (SG Iron, Spheroidal Graphite Iron)

Ductile Iron Casting

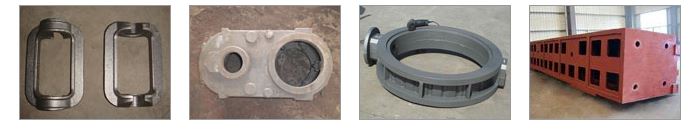

Grey Iron Casting

Grey Iron Casting

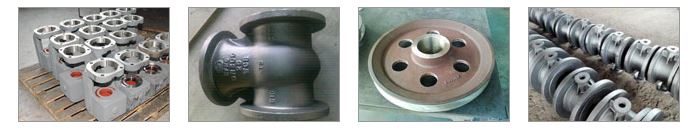

Cast Steel Casting

Cast Steel Casting

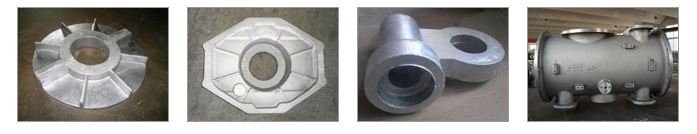

Aluminum Sand Casting

Aluminum Sand Casting

Brass Sand Casting

Brass Sand Casting

Qingdao TianHua YiHe Foundry is a professional sand casting foundry in China. We offer a reliable and low cost sand casting solution, such as: green sand casting, resin bonded sand casting, shell mold casting and lost foam casting.
The main sand casting material has iron (grey Iron, ductile Iron, S.G. Iron), brass, aluminum, steel etc.
We support technical standards of metal casting, includes: ASTM, ANSI, SAE, DIN, and BS.
We also provide the following services:
1. Metal Fabrication Service, CNC Machining and EDM Machining Service
2. Heat Treatment:
Hardening, Annealing, Normalizing, Stress Relieving, Softening, and Graphitization
3. Surface Treatment:
Metal Polishing (Metal Mirror Polished, Brushed Metal Finishing), Shot Blasting, Sandblasting, Spray Painting, Powder Coating, Thermal Spraying, Anodizing, Chrome Plating, Nickel Electroplating / Electroless Nickel Plating, Hot-Dip Galvanizing, Copper Plating, Phosphorizing, Electrophoresis and Passivation
4. Assembly
5. Packing and Delivery
6. Testing Report, QC Report
